Grinding polishing machine and magnetic grinding machine difference

分享到：

grindingpolishingmachineprinciple

Grinding and polishing machine is a kind of mechanical equipment for grinding and polishing the workpiece surface. The principle is to apply grinding or polishing force by rotating grinding disc or throwing disc, and add grinding or polishing material on the grinding or throwing disc to grind or polishing the workpiece surface.

研磨拋光機(jī)

Specifically, the working principle of the grinding and polishing machine is as follows:

Rotation of the grinding disc or throwing disc: The grinding disc or throwing disc is driven by a motor to rotate the surface of the grinding or throwing disc into a state of high-speed rotation.

Applying grinding or polishing force: Applying a grinding or polishing force to a grinding disc or polishing disc, usually by means of a mechanical, pneumatic, or hydraulic device. Applying a grinding or polishing force allows the grinding or polishing material to make better contact with the workpiece surface, resulting in a more efficient grinding or polishing.

Add grinding or polishing materials: Add certain grinding or polishing materials, such as sandpaper, grinding cloth, polishing paste, etc., on the grinding disc or polishing disc. The choice of grinding or polishing material and the way it is used depends on factors such as workpiece material, surface state and desired treatment effect.

Grinding or polishing of the workpiece: The workpiece to be processed is placed on the grinding disc or polishing disc and in contact with the grinding or polishing material to grind or polish the surface of the workpiece by rotating the grinding or polishing disc and applying the grinding or polishing force. During the grinding or polishing process, the grinding or polishing materials can be gradually changed according to the need until the required treatment effect is achieved.

平移式磁力研磨拋光機(jī)

The working principle of the grinding and polishing machine is to grind or polish the workpiece surface by rotating grinding disc or throwing disc, applying grinding or polishing force, adding grinding or polishing materials, so as to achieve the purpose of improving the workpiece surface quality, shape, accuracy and so on. Grinding and polishing machine can usually be used for Metal, plastic, ceramic, glass and other materials surface treatment. According to different workpiece and processing requirements, grinding and polishing machines can be equipped with different types and specifications of grinding or polishing discs, as well as different types and granularity of grinding or polishing materials to meet different processing requirements.

It is important to note that safety needs to be paid attention to during the operation of the grinding and polishing machine to avoid splashing of grinding or polishing materials, debris and other injuries. At the same time, according to different workpiece and processing requirements, choose the appropriate grinding or throwing disc, grinding or polishing materials, master the appropriate processing parameters and skills, in order to obtain the best processing effect.

磁力拋光研磨機(jī)

Grinding and polishing machine withMagnetic grinding machinedifference

Grinding polishing machine and magnetic grinding machine are surface treatment equipment, but their treatment principle and application situation is different.

The grinding and polishing machine lapping or polishing the workpiece surface by grinding or throwing the rotating motion of the disc, so that the grinding or polishing material and the workpiece surface produce relative motion, so as to grind or polish the workpiece surface. This equipment is mainly suitable for precision grinding or polishing of materials. It can handle a wide range of workpiece shapes and sizes, including a variety of plane, curved surface and cylindrical shape of the workpiece.

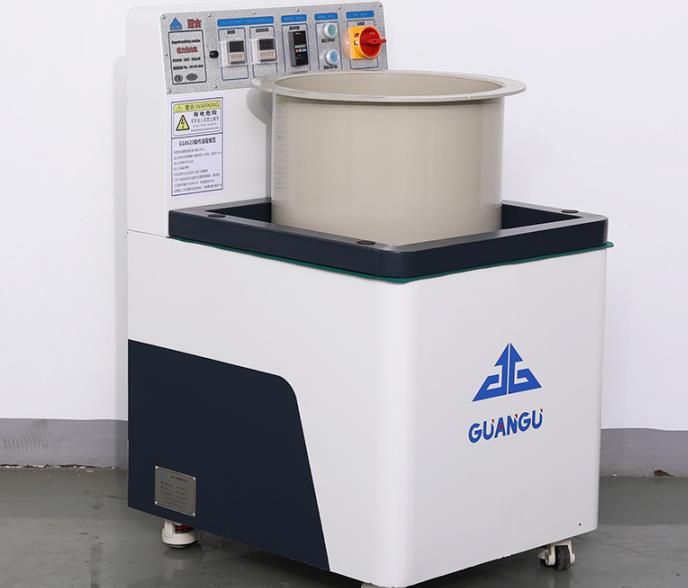

The magnetic grinding machine is through the effect of magnetic force, the grinding material and the workpiece surface adhesion, and then use the grinding medium in the magnetic field grinding effect on the workpiece surface grinding treatment. This equipment is mainly suitable for small, complex shape of the workpiece surface grinding processing, such as small holes, cavities, grooves and other small parts of the processing.

Grinding polishing machine and magnetic grinding machine are surface treatment equipment, but their treatment principle and scope of application are different, need to choose the appropriate equipment for surface treatment according to different workpiece and processing requirements.
